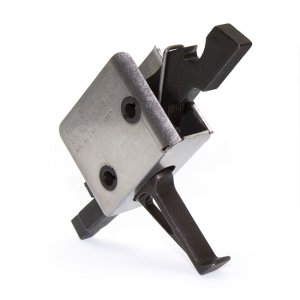

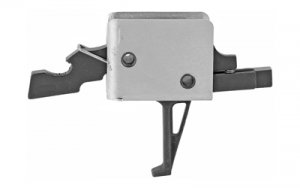

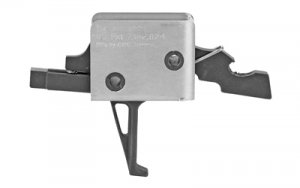

CMC AR Single Stage 2.5 LB Flat Trigger

CMC’s AR-15/10 patented “Signature” Flat Drop-in Trigger Bow is the ultimate for feel and break. With the Shooters finger coming to rest naturally on the shoe, every pull is the same as the one before it. The CMC Flat Trigger Bow renders a linear feel unsurpassed by any other trigger bow shape.

Our critical sear engagement surfaces have a propriety machining process that renders superior surface finish and dimensional control. As compared to our competition, the techniques we use establish a 1-2 RMS surface finish as opposed to EDMing which leaves a pitty 32 RMS at best. Compared to a mirror which is 0 RMS, this is what sets the CMC Trigger apart from it competition.

CMC Triggers sear engagement overlap is up to 6-8 times greater than our competitors. This provides a much safer trigger and enhances reliability.

Features:

• Pin Type: Small Pin (.154 Ø)
• Pull Weight: 2.5 lbs
• Single Stage Match Trigger
• WHAT IS A SINGLE STAGE TRIGGER? – A single stage trigger requires one range of motion to pull the trigger in order to release the hammer. The benefit of a single stage trigger is that it’s simple. Most shooters agree that a single stage trigger is crisper in the break of the trigger because you don’t feel the initial resistance of the first stage. A majority of shooters prefer the single stage triggers for most applications.
• Ultra-crisp trigger with no feel of creep prior to hammer release
• Trigger has glass-smooth break with no feel of grittiness
• Minimal lock time is designed into the assembly using controlled hammer weight and balance activated by a rocket wire hammer spring, assuring repeatable function with either commercial or military grade ammunition
• Trigger pull is factory pre-set and not user adjustable
• Positive trigger reset allows a quick follow up shot on target
• Hand assembled, and hand tested
• Totally self-contained one-piece assembly

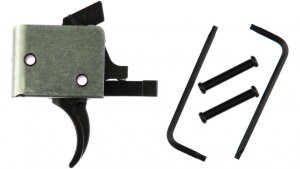

• Includes Small Anti-Walk Pin Set
• Fits MIL-SPEC AR-15 and AR-10 style rifles
• Made from 8620 Alloy Steel and S7 Tool Steel with machined tolerances of +/– .001"
• Easy to install, see video above for installation instructions
• SMALL PIN (.154 Ø) – If your AR rifle is NOT a Colt or your Colt was produced before 1991 or after 2009 it will take a SMALL PIN.
